X-150 Product Gallery
Explore detailed technical views of the X-150 gasification system. High-resolution renders showing external design and internal components.
View Full Size
Perspective View
Complete X-150 containerized gasification system showing the modular design and compact footprint
View Full Size

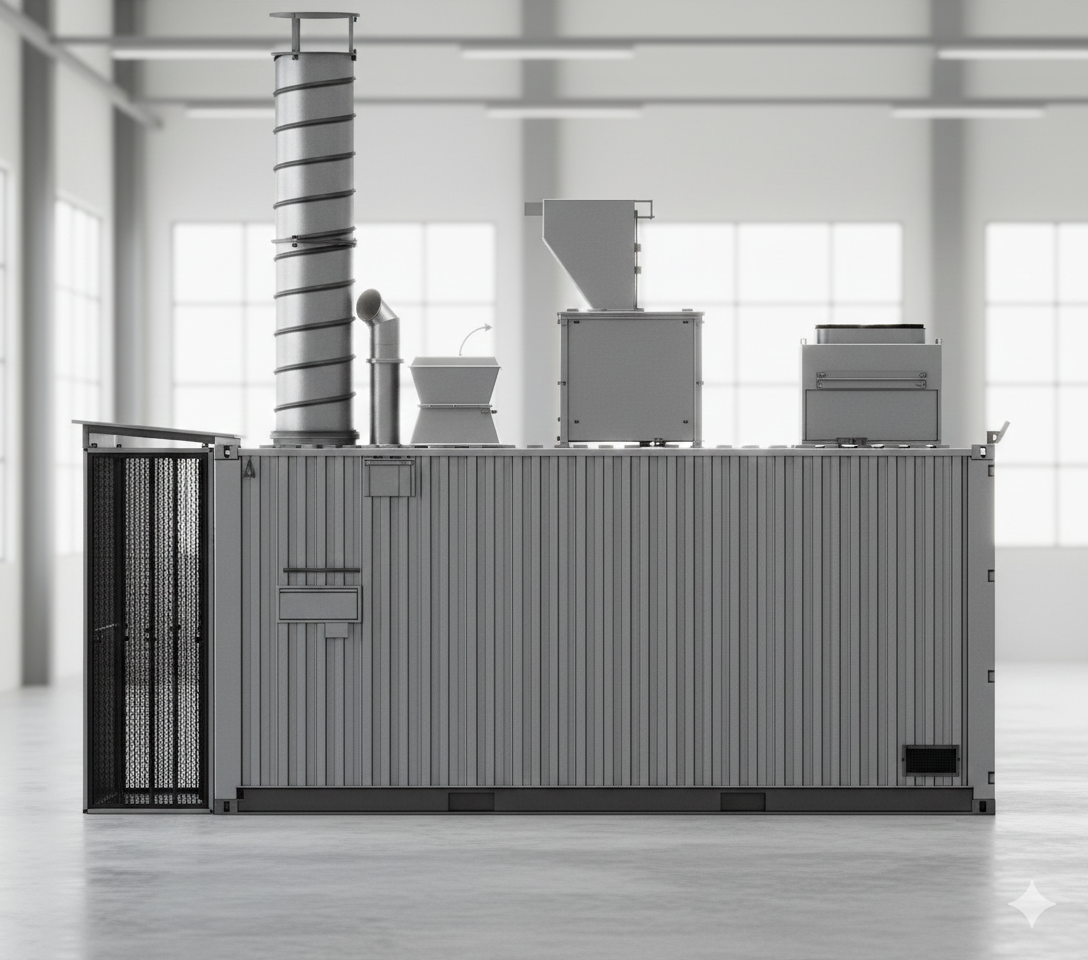

Rear View
Back view showcasing the syngas output connections and electrical systems integration
View Full Size

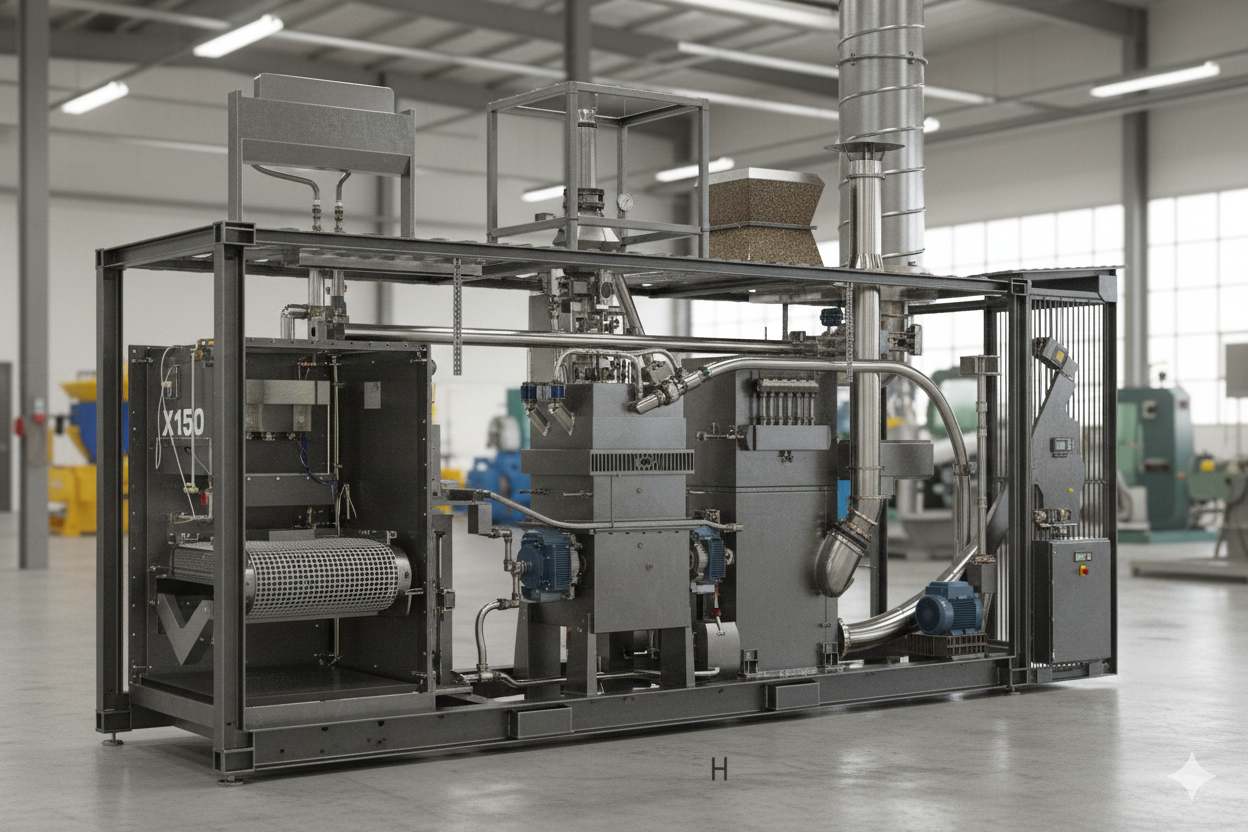

Cutaway Perspective
Internal view revealing the gasification reactor, tar removal catalyst, and syngas cleaning systems
View Full Size

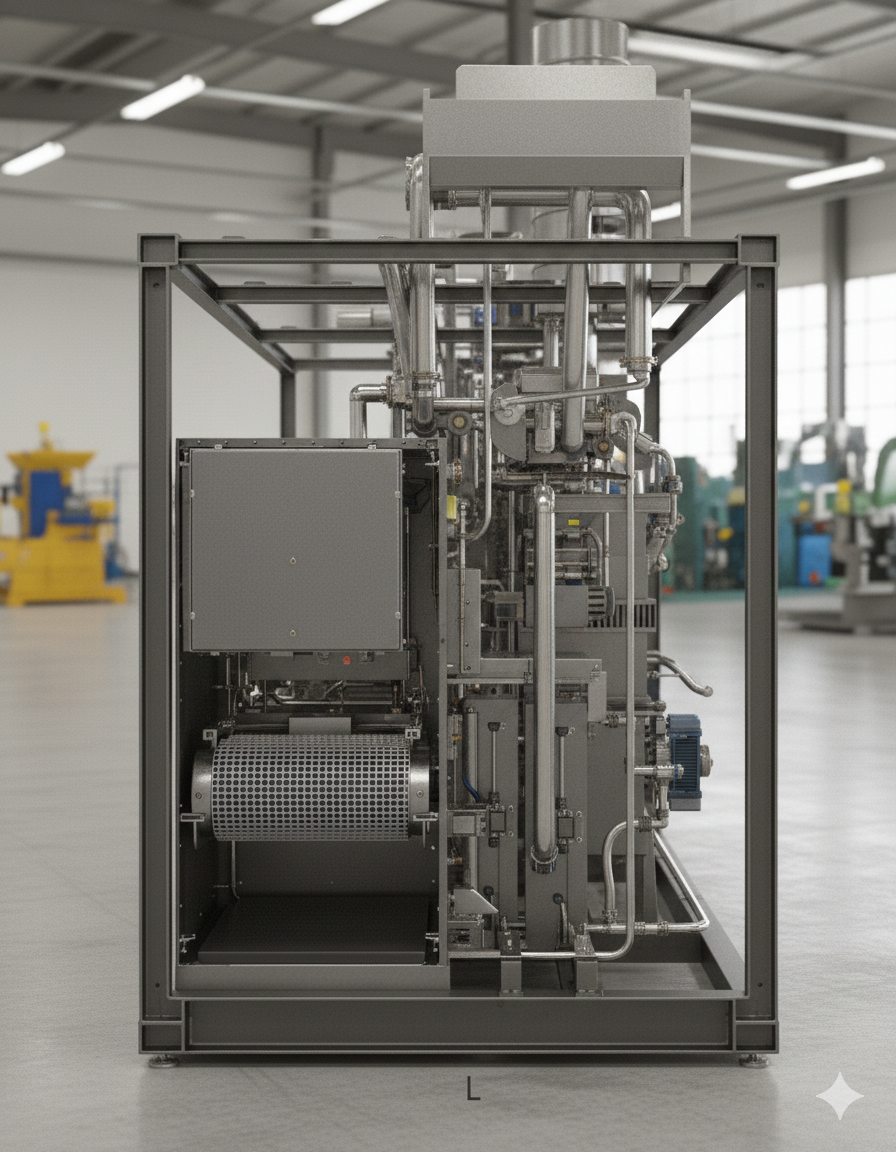

Side Cutaway View 1
Detailed side cross-section showing the gasification chamber, heat exchangers, and filtration systems
View Full Size

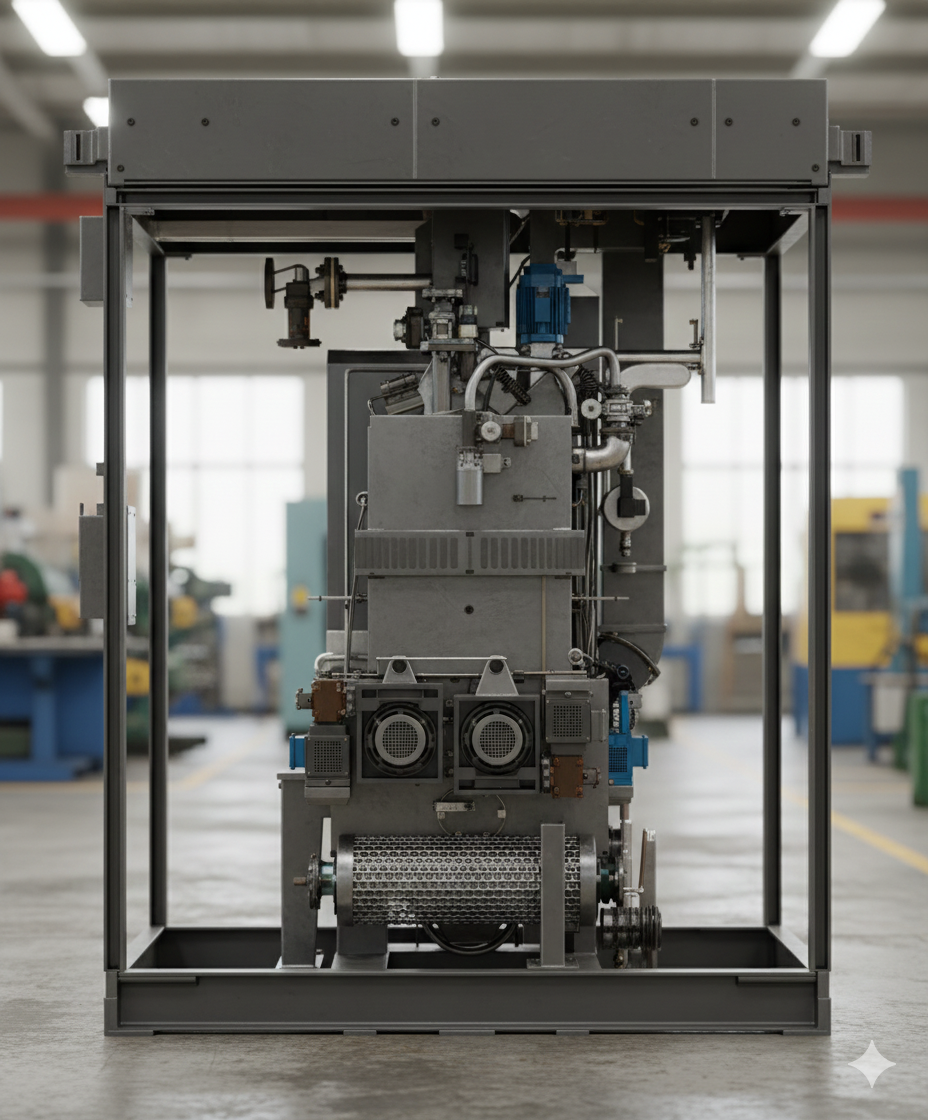

Side Cutaway View 2
Alternative side view highlighting the feedstock hopper, reactor core, and ash removal system
View Full Size

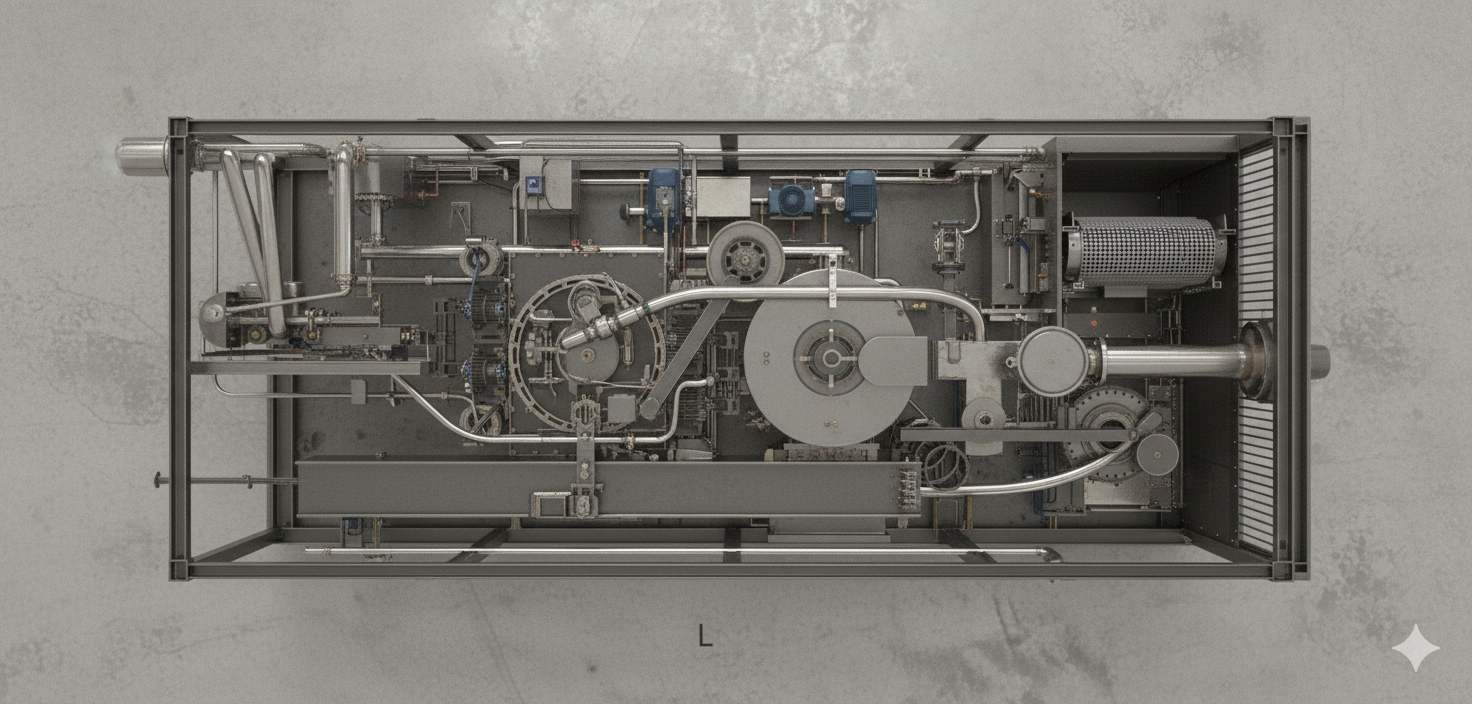

Top-Down View
Overhead layout showing equipment arrangement and maintenance access points
System Specifications
Dimensions
- • Length: 12 meters (40 ft)
- • Width: 3.5 meters (11.5 ft)
- • Height: 6 meters (20 ft)
- • Weight: 18-22 tonnes
Performance
- • Feedstock: 80-150 kg/h
- • Syngas Output: 104-400 kg/h
- • Heat Output: 12-35 kW
- • Efficiency: 42-53%
